Bag Filter Housing

Bag Filter Housing

PFP designed and manufactured Bag Filter Housings and vessels in accordance with Pharmaceutical GMP requirement and Fabrication Standards. All Designs are customized to meet user requirement.

Features and MOC

  1. Used for High Viscosity liquid Filtration
  2. Designed for large volume operation - High Flow rate
  3. Economical and easy to Handle
  4. Filter bags of PP / Nylon and other fabrics can be used
  5. High Dirt Holding Capacity
  6. Multi Bag Design
  7. Customized size and design as per requirement

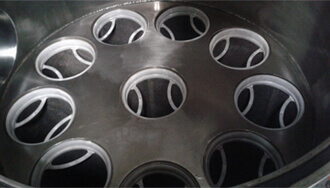

bag-filter-housing

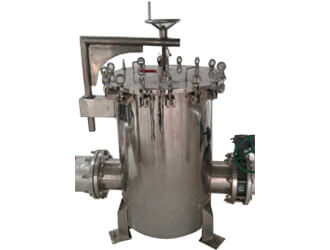

bag-filter-housing

Material of Construction
  1. Housing is designed and fabricated in SS or MS or other metal as desired.
  2. They are available in PP and FRP also
  3. Bag Filter Housing assembly consist of - Housing + Inner Cage + Filter bag + Sealing arrangement for bag to stay in place at high pressure.
  4. Solids are collected in filter bags which can be easily cleaned and replaced
  5. Suitable to be used with Filter bags with PP Collar or SS Ring
  6. Filter housing are designed as per ASTME Standard

Application
  • Paints
  • Chemicals
  • Water
  • Coolants
  • Resins
  • Pharmaceuticals
  • Sugar syrup
  • Polymers
  • Oil etc
  • Sizes

Bag filter system suitable for
  • Ø 4" x 10" Long Filter Bag
  • Ø 4" x 16" Long Filter Bag
  • Ø 7" x 16" Long Filter Bag
  • Ø 7" x 32" Long Filter Bag

The above sizes can be designed for multiple bag Filter also up to 16 or more
Flow Rate
Capacity : Up to 2000 m3 / hr

End connections available
  • NPT / BSP Threaded
  • Flanged Table E / Table F
  • ANSI B 16.5 Flanged
  • DIN Standard
  • Tri Clover Adaptors
