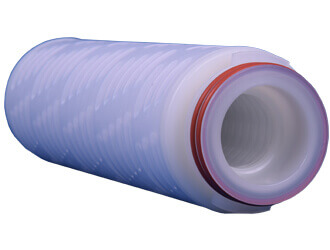

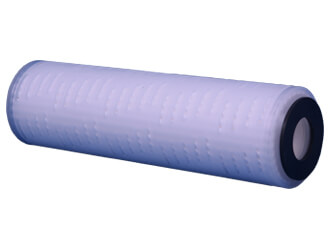

Nylon Filter Cartridge

Nylon Filter Cartridge

Filters are specially designed for pre-filtration, Bio-burden and final-filtration of pharmaceutical solution. Nylon membrane with positive charged zeta particle is also available. Cartridges are designed to remove contaminants smaller than the rated pore size (including endotoxins) by way of an adsorptive mechanism. Many particles common in water and other liquids have a net negative charge, allowing for enhanced capture by the positively charged nylon membrane in this filter. This charge-based filtration mechanism combined with the traditional particle size exclusion (sieving) mechanism results in extremely high removal efficiency at and even below the rated pore size. Filter cartridges are characterized by hydrophilic Nylon membrane, providing high throughputs, low extractable and good mechanical strength, widely used for sterile filtration in Active Pharmaceutical Ingredients production.


Features and Benefits

  • Low extractable and high absorption
  • High throughputs and cost-effective as well as longer service life
  • Enhanced removal of end toxins by positive zeta potential
  • Low Pressure drop & high flow rates
  • 100% integrity testable prior to release
  • Cartridges produced in a controlled environment
  • Manufactured according to ISO9001 certified Quality Management System


  • Buffer Solution
  • LVP & Antibiotics
  • WFI
  • Active Pharmaceutical Ingredients
  • DI Water
  • Critical Parts Cleaning
  • Fine Chemical
  • UltraPure Water
  • Endotoxin Minmization
  • Beverages
  • Plating Solutions
  • Acid & Bases
  • Biologic Retention
  • Inks
  • Clarification
  • Lacquer
  • Dyes

Materials of Construction

  • Membrane : Hydrophilic Nylon 66
  • Membrane Supports : Polypropylene
  • Cage, Core, End Caps : Polypropylene
  • O-Rings : Silicone, EPDM, Viton, Buna etc


  • Diameter ø68
  • Length 5 inch, 10 inch, 20 inch, 30 inch, 40 inch

Pore Size

  • 0.1, 0.22, 0.45, 0.65,1, 3, 5 UM

Operating Conditions
Maximum Forward Differential Pressure
• 4.2 bar @ 23°C
• 1.5 bar @ 85°C
Filtration Area, ft2
• 6.4 ft2 per 10-inch cartridge

Filter effluent is non-pyrogenic per USP   bacterial endotoxin ( <0.25 EU/ ml)

Sterilization & Autoclaving
Steam in Place or Autoclave Sterilization @ 123 °C
Validation Guide available upon request.
