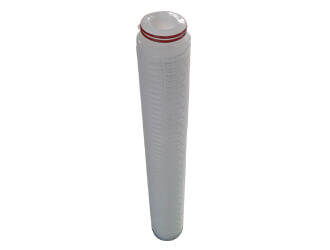

PVDF Filter Cartridge

PVDF Filter Cartridge

PFP PVDF Filter cartridges are manufactured using hydrophobic PVDF Membrane and Polypropylene components. They have very low protein binding characteristic making it ideal for filtration of biological, chemicals, intermediates and organic solvents. Sealing technology Thermal Bonding, No Adhesives, binders or surfactants are used in the manufacturing process. Filter cartridges are 100% Integrity tested prior to release ensures consistent performance to specification. Advanced Pleat Technology construction allows maximum fluid and contaminant access to filter surface area for highest throughput.

Features and Benefits
  • Excellent chemical compatibility
  • Minimum Protein Binding
  • High Flow rates
  • 100% integrity testable prior to release
  • Manufactured in clean room environment

  • Organic solvent filtration
  • Filtration for harsh chemicals and HPLC mobile phases that destroy other membrane materials
  • Sterile filtration for aqueous media
  • Filtration for strongly corrosive or oxidizing solutions
  • Acids & Bases
  • Fine Chemicals
  • Plating Solutions
  • Parts Cleaning
  • Ink Jets
  • Electronics
  • Pharmaceuticals
  • Biologics
  • Dyes
  • Lacquers

Materials of Construction

  • Membrane : Hydrophobic PVDF
  • Membrane Supports : Polypropylene / PVDF
  • Cage, Core, End Caps : Polypropylene
  • O-Rings : Silicone, EPDM, Viton, Buna N, TES, and TEV

Operating Conditions
Maximum Forward Differential Pressure :
  • 4.2 bar @ 23°C
  • 1.5 bar @ 80°C

Filtration Area, ft2
  • 6.42ft2 per 10-inch cartridge


  • Filter effluent is non-pyrogenic as per USP bacterial endotoxin (<0.25 EU/ml)

Sterilization & Autoclaving
Supports steam in Place or Autoclave Sterilization @ 123 °C
*Validation Guide available upon request.
