Spun Filter

Spun Filter

spun
spun

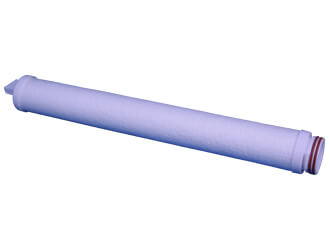

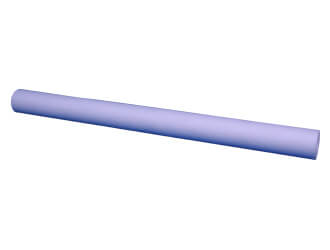

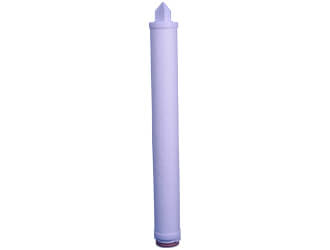

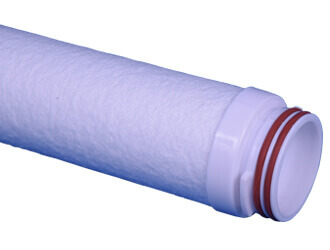

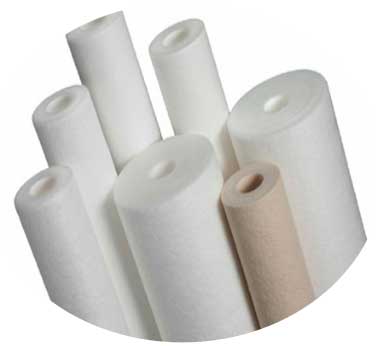

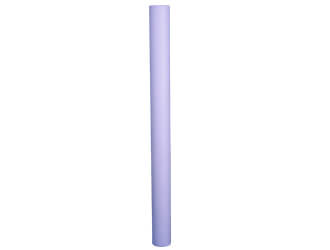

PP Spun filters are manufactured of thermally bonded polypropylene microfiber to ensure high efficiency. Thermally bonded microfiber has minimal fiber release and consistent flow rate. They are ideal for Food and beverage application as they don't impact color, taste or odor of the liquid being filtered. They are also suitable for high temperature application upto 80 degree.
PFP Spun Filters are ideal pre-filters and polishing filters where there is a fairly wide contaminant particle size distribution. The depth filtration mechanism also provides excellent control of gelatinous contaminants. A fixed pore structure formed by the non-shedding, bonded medium prevents release of trapped particles. The self-supporting fiber matrix enables a coreless design that is both economical and strong. The polypropylene filter medium provides broad chemical compatibility.


spun
spun


Features

  • Thermally Bonded Polypropylene Depth Cartridges utilize graded density eliminating extractables.
  • Meet NSF 42 certified, FDA approved and rated USP Plastic Class VIĀ .Compliances.
  • Multi-layered structured cartridge with high dirt holding capacity.
  • Low pressure drop.
  • High flow rates.
  • High dirt-holding-capacity.
  • Fixed-pore-structure retains trapped debris.
  • FDA listed polypropylene - 21 CFR 177.1520.
  • Broad chemical compatibility.
  • Controlled process parameters - consistent.

Applications

  • Process Water Filtration
  • Chemical
  • Pharmaceuticals
  • Electronic / Plating
  • Coating
  • Oil Industry
  • Food and Beverage Industry
  • Paint Industry
  • RO Plant
  • Amines, glycols, produced water, brine fluids
  • Paints, inks, pigments, solvents (nonhalogenated)

Specifications

  • Length - 10" / 20" / 30" / 40" Core - PP
  • Diameter - 2.5 inch to 4.5 inch
  • Filter Media - Polypropylene, Nylon,PES
  • Micron Ratings - 0.5, 1, 5, 10, 25, 50, 75 and 100. On request, customized micron rating can also be provided.
