Capsule Filter - Tri Clamp

Capsule Filter - Tri Clamp

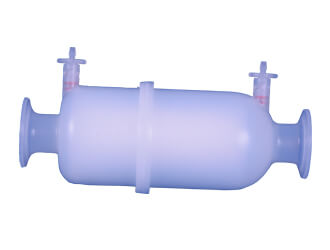

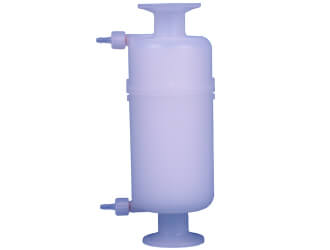

Tri Clamp Capsule filter are designed to provide smart, disposable and safe filtration for small capacity Liquid of lyophilized powder and other pharmacy. These disposable filter can help eliminate cleaning problems and extra validation cost. The T Style configuration is ideal for operation. 100% Integrity tested prior to release ensure high quality products.



Features

  • Eco friendly & cost effective
  • Disposable and safe
  • Low Hold Up Volume
  • Good resistance to pressure

Specification

  • Filter media - PES / Nylon / PP / GF / PVDF / MCE
  • Support & housing - PP
  • Sealing - thermal bonding, NO Adhesive


Filtration Area : > 0.2m2 (2.2ft2)
Pore Size : 0.1 to 5 micron
Maximum Forward Differential Pressure :
Liquid 3.5 bar @ 23 degree and 3.0 bar @ 60 C
Air & Gas 3.0 bar @ 23 degree and 2.5 bar @ 60C

Sterilization
3 autoclave cycle of 30 Mins at 123C, Steam in place not recommended
Validation Guide available on request.
